Precision Manufacturing Made Easy
The advanced manufacturing tools within Carveco™ software aid in preparing your designs for a variety of precision manufacturing methods. From routing wood, creating molds or press tools, laser cutting, engraving hard-wearing metals for production lines, or simply nesting your designs to achieve the minimum amount of material waste, Carveco affords the necessary control to ensure your designs can be manufactured to your exact specifications.
Key Features

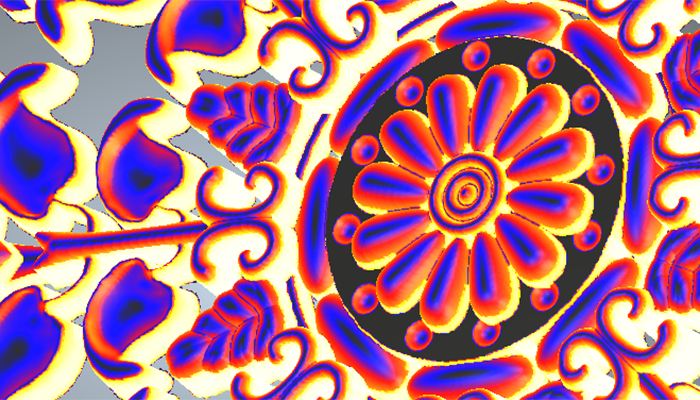

Relief Analysis
Carveco™ software includes relief-analysis tools which overlay colour information indicating both heights and gradients across your design. This is particularly beneficial in the creating of foiling and embossing dies, where height or angle thresholds are critical to the manufacturing process.

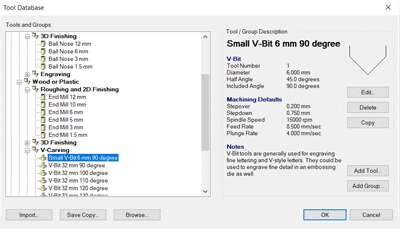

Tool Database
Use the fully editable Tool Database to manage your cutting tools and their associated parameters. Select the appropriate tool for your material type, or add your own specialized cutting bits to suit your tooling requirements.

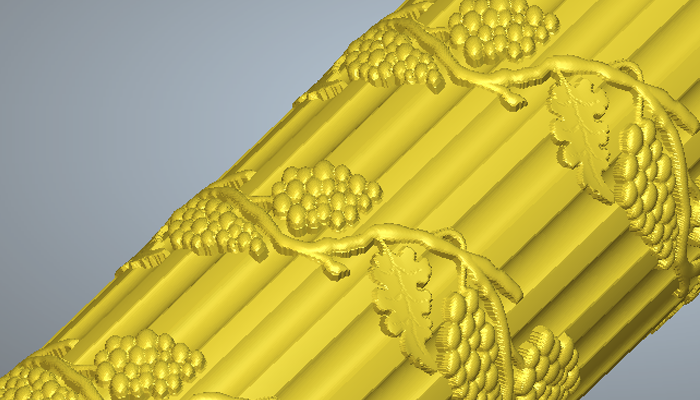

Multi-Axis Machining
Your designs can be machined using 3-axis, or rotary 4-axis with automatic support for tool changing and rotary index moves. Alternatively, export a triangle or quadrangle mesh for use in additional manufacturing environments or alternative CAD/CAM programs.

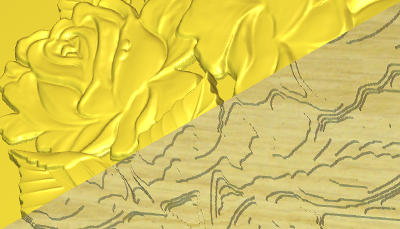

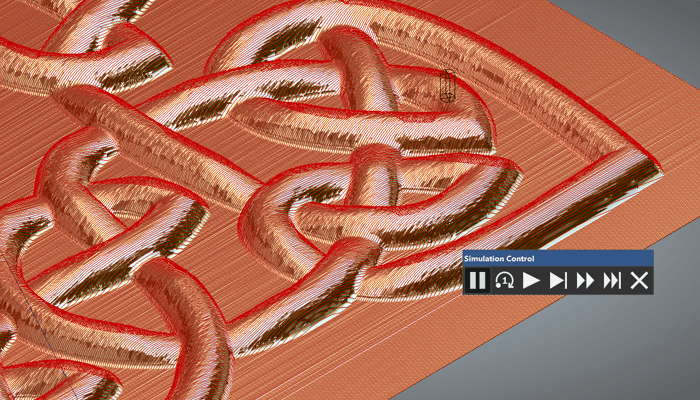

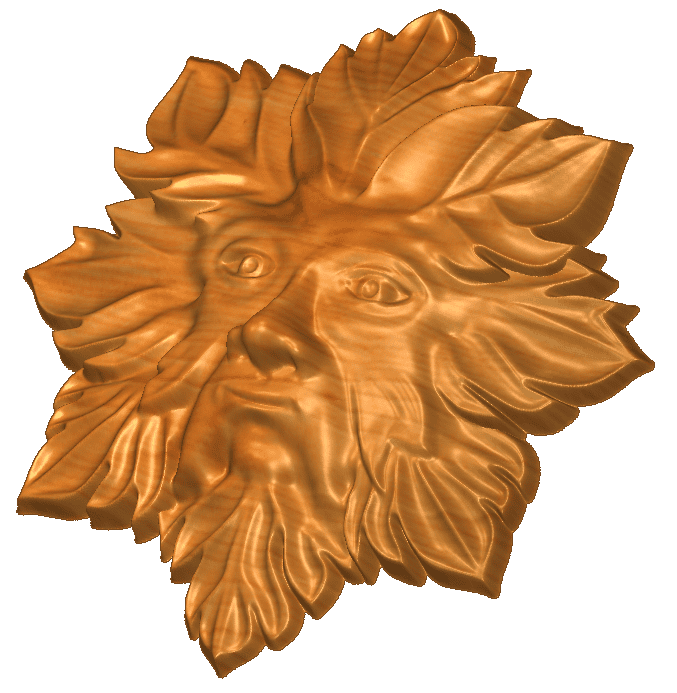

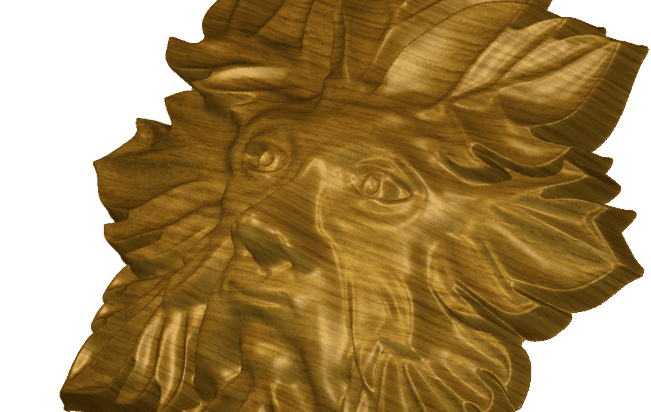

Machining Simulation

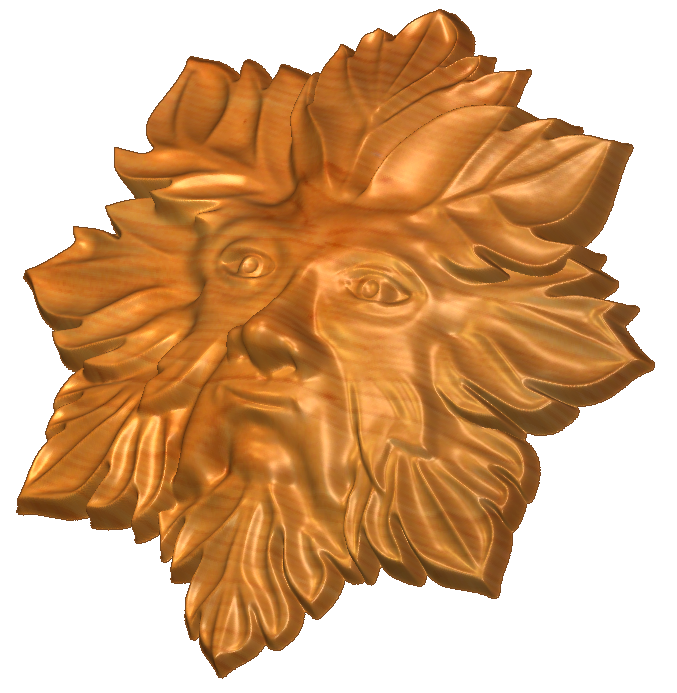

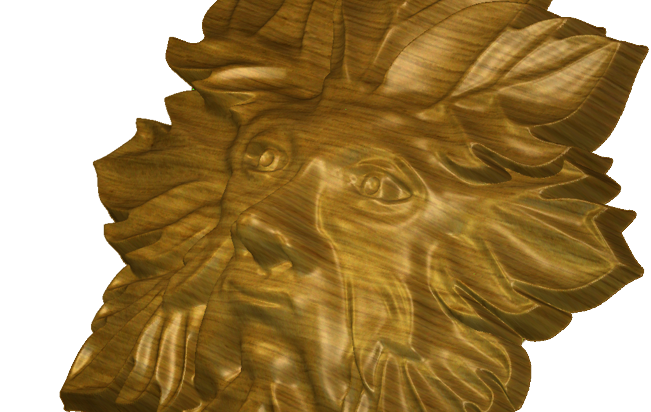

Carveco’s machining simulation allows you to preview the results of your tooling choices before committing time or sacrificing materials. Choose to simulate the entire design or a specific area of your model using the tools you’ve chosen, and render the results in a variety of realistic materials.

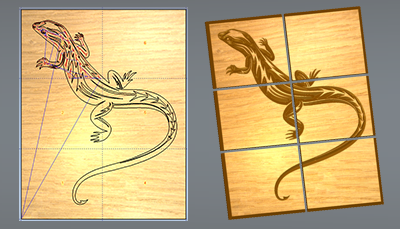

Toolpath Panelling
Produce designs beyond the constraints of your CNC bed or stock material by machining your design in calculated sections. Reposition your material as you work, or reassemble your cut sections at the end.
Projects & Assemblies
Carveco’s projects and assembly modelling tools enable you to build a complete 3D model of your work by combining imported 3D models and reliefs. Full positional controls let you easily orientate and position all elements prior to production.

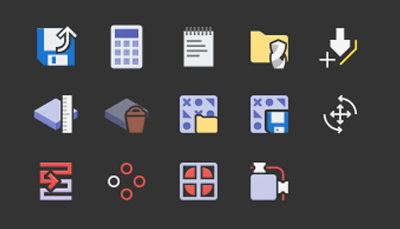

Complete Toolpath Control
Carveco’s toolpath operations have been designed for tool room efficiency. See exactly how long your designs will take to machine with the Toolpath Summary. For repeat machining, save-out frequently used tool selections and strategies as a Toolpath Template. Transform, Copy and Merge your toolpaths together to streamline your production process.
2D Machining: Strategies & Features
Profile Toolpath
Machine along, inside or outside a boundary vector
Area Clearance Toolpath
Remove large amounts of material quickly
V-Bit Carving Toolpath
Create V-Bit recessed cuts along vectors
Bevel Carving Toolpath
Produces a bevelled edge carving along a vector
Inlay Toolpath
Machine corresponding male and female inserts
Fluting Toolpath
Create and control ramping cuts along defined vectors
Smart Engraving
Corner sharpening and speciality embossed effects
Texture Toolpath
Create textures using tool geometry
Raised Round Toolpath
Machine recessed letters and shapes with precision
Drilling Toolpath
Drill holes using selected vectors
Drill Bank Toolpath
Support for multi-drill CNC machines and patterns
2D Machining Wizard
Automated 2D machining and nesting
3D Machining: Strategies & Features
Machine Relief Toolpath
Machine a composite 3D relief
Feature Machining Toolpath
Centreline Engraved, Raised or Recessed features
Z-Level Roughing Toolpath
Rough out 3D material from your composite relief
3D Profile Toolpath
Cut out your 3D model with a profiling toolpath
Laser Machining Toolpath
Dedicated toolpaths for Laser Engraving CNC machines
3D Rest Machining Toolpath
Machine-away material larger tools cannot reach
